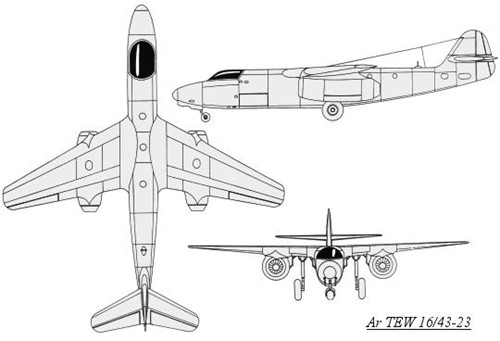

This fighter dates from 1943, and was to be of an all-metal construction. It featured swept-back wings, and two He S 011 turbojets were mounted beneath the wings. The fuselage contained three fuel tanks which were located behind the cockpit. A single fin and rudder was fitted with the tailplanes having a small amount of sweep also. The main landing gear rotated 90 degrees before being retracted forwards into the wing. As per the Ar TEW 16/43-13, a spherical tire was chosen for the front landing gear. The cockpit was located in the forward part of the fuselage, and armament consisted of a single MG 151/15 15mm machine gun and two MG 213/20 20mm cannon, all located in the nose beneath the cockpit. This aircraft did not get out of the preliminary design phase; instead, design and production was concentrated on the Ar 234.| Span | Length | Height | Wing Area | Max Weight | Max Wing Load | Max. Speed | Ceiling |
| 10.6 m 34' 9" |
12.2 m 40' 1" |
2.69 m 8' 10" |
20 m² 215.28 ft² |
7000 kg 15432 lbs |
350 kg/m² 71.6 lbs/ft² |
920 km/h 572 mph |
12000 m 39370' |

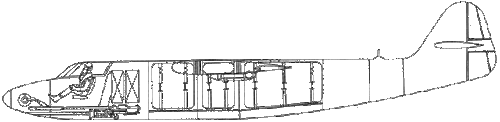

A simple cutaway drawing of the Arado Ar TEW 16/43-23
Click for better picture
Above images from Reichdreams Dossier #16: Arado Jet Fighters
